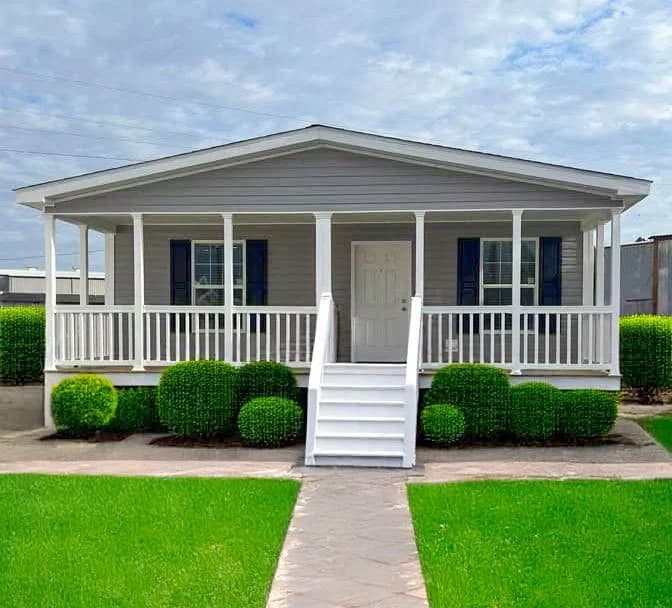

Lake Manor - Double Wide series

Construction

• Steel Frames (size per print)
• Wind Zone I Construction
• Energy Star Climate Zone Envelope I & II
• Foamcore Siding Backer
• 7/16” OSB Roof Sheathing
• 2x6 #3 Floor Joists 16” OC (24’ & 28’ Wides)
• 2x8 #2 Floor Joists 16” OC (32’ Wides)
• 2x4 Exterior Walls 16” OC
• 2x3, 24” OC Interior Studs Throughout
• 2x4, 24” OC Double Mate Line
• 8’ Flat Ceilings
• Dropped Headers at all Mate Wall Openings
• 19⁄32” T&G OSB Floor Decking
• 24” OC, HUD Trusses (28’ Wides - 36” KP/ 32’ Wides - 38” KP)
• Removable Hitch & Recessed Frames
• Stipple Ceiling Texture
• Nominal 12” Overhangs

Steel Frames (size per print)
Wind Zone I Construction
Energy Star Climate Zone Envelope I & II
Foamcore Siding Backer
7/16” OSB Roof Sheathing
2x6 #3 Floor Joists 16” OC (24’ & 28’ Wides)
2x8 #2 Floor Joists 16” OC (32’ Wides)
2x4 Exterior Walls 16” OC
2x3, 24” OC Interior Studs Throughout
2x4, 24” OC Double Mate Line
8’ Flat Ceilings
Dropped Headers at all Mate Wall Openings
19⁄32” T&G OSB Floor Decking
24” OC, HUD Trusses (28’ Wides - 36” KP/ 32’ Wides - 38” KP)
Removable Hitch & Recessed Frames
Stipple Ceiling Texture
Nominal 12” Overhangs

Other

• Carrier Electric Furnace Per Print
• Standard In-line Heat Registers Per Print
• 50 Gallon Electric Water Heater
• PEX Water Supply Lines
• Whole House Shut-Off Valve (location per print)
• Water Shut-Off Valves at All Toilets & Sinks
• Plumb & Wire for Washer & Dryer
• Drop Out Crossover Ducts
• (1) Exterior Water Faucet on Rear (per print)

Carrier Electric Furnace Per Print
Standard In-line Heat Registers Per Print
50 Gallon Electric Water Heater
PEX Water Supply Lines
Whole House Shut-Off Valve (location per print)
Water Shut-Off Valves at All Toilets & Sinks
Plumb & Wire for Washer & Dryer
Drop Out Crossover Ducts
(1) Exterior Water Faucet on Rear (per print)

Mechanical

• Total Electric & 200 AMP Service
• 40 Space Panel Box
• Light Fixtures at All Exterior Doors
• (1) Exterior GFI Electrical Receptacle – (location per print)
• GFI Receptacles in Kitchen and Baths
• Programmable Thermostat
• LED Fixtures T/O

Total Electric & 200 AMP Service
40 Space Panel Box
Light Fixtures at All Exterior Doors
(1) Exterior GFI Electrical Receptacle – (location per print)
GFI Receptacles in Kitchen and Baths
Programmable Thermostat
LED Fixtures T/O

Exterior

• Double 5 Vinyl Siding
• 25 Year Fiberglass Shingles
• Low E Vinyl Windows w/ Grids (No Sills)
• 38x82 Fiberglass Front Door w/ Dead Bolt
• 34x76 Rear Out-Swing Cottage Door (w/ 9-Lites)
• Shutters - Front Door Side Only (or Hitch End of End Load Units)
• Metal Fascia

Double 5 Vinyl Siding
25 Year Fiberglass Shingles
Low E Vinyl Windows w/ Grids (No Sills)
38x82 Fiberglass Front Door w/ Dead Bolt
34x76 Rear Out-Swing Cottage Door (w/ 9-Lites)
Shutters - Front Door Side Only (or Hitch End of End Load Units)
Metal Fascia

Interior

• 30” Overhead Cabinet Designs per Print
• 3⁄4” MDF Stiles w/ Pocket Screw Construction
• Beare Board Side Panels
• Shelf Above Refrigerator
• Lined Overhead Cabinets
• Hardwood Shaker Cabinet Doors (Crescent Oak) w/ 2-Hole Pulls
• Concealed Cabinet Door Hinges (Soft Close)
• Matching Toe-Kicks in Kitchens (Same as Cabinet Color)
• 1⁄2 Center & Finished Bottom Shelf in Base Cabinets
• Cabinet Stile Cap
• Drawers over Doors
• Standard Style Vanities
• Post Form Countertops

30” Overhead Cabinet Designs per Print
3⁄4” MDF Stiles w/ Pocket Screw Construction
Beare Board Side Panels
Shelf Above Refrigerator
Lined Overhead Cabinets
Hardwood Shaker Cabinet Doors (Crescent Oak) w/ 2-Hole Pulls
Concealed Cabinet Door Hinges (Soft Close)
Matching Toe-Kicks in Kitchens (Same as Cabinet Color)

Bathroom

• Stainless Steel Kitchen Sink w/ Dual Knob Brushed Nickel Faucet
• Standard Mirrors in Baths w/ Clips (No Trim)
• Fiberglass Tubs/Showers Hall Bath w/ Metal Brushed Nickel Faucets
• 1-pc 42x60 Garden Tub in Master Bath
• LED Lights Above Each Sink
• Porcelain Sinks w/ Single-Lever Brushed Nickel Faucets

Stainless Steel Kitchen Sink w/ Dual Knob Brushed Nickel Faucet
Standard Mirrors in Baths w/ Clips (No Trim)
Fiberglass Tubs/Showers Hall Bath w/ Metal Brushed Nickel Faucets
1-pc 42x60 Garden Tub in Master Bath
LED Lights Above Each Sink
Porcelain Sinks w/ Single-Lever Brushed Nickel Faucets

Interior

• 1⁄2” Finished Sheetrock w/ Square Corners T/O Including Closets
• 2 1/4” Flat MDF Trim Package - Ceiling, Windows, Doors & Base
• Vented Wire Shelving in Closets & Over Washer/Dryer Areas
• White 3-Panel Craftsman Interior Doors
• Brushed Nickel Door Knobs & (3) Mortised Hinges
• “Congoleum Diamondflor®” No Wax Vinyl Flooring T/O

1⁄2” Finished Sheetrock w/ Square Corners T/O Including Closets
2 1/4” Flat MDF Trim Package - Ceiling, Windows, Doors & Base
Vented Wire Shelving in Closets & Over Washer/Dryer Areas
White 3-Panel Craftsman Interior Doors
Brushed Nickel Door Knobs & (3) Mortised Hinges
“Congoleum Diamondflor®” No Wax Vinyl Flooring T/O

Kitchen

• Stainless Steel 30” Standard Range Hood
• Stainless Steel 18 cu ft Frost-Free Refrigerator w/ Icemaker
• Stainless Steel 30” Free Standing Electric Range

Stainless Steel 30” Standard Range Hood
Stainless Steel 18 cu ft Frost-Free Refrigerator w/ Icemaker
Stainless Steel 30” Free Standing Electric Range

Other

• 7-Year Warranty

7-Year Warranty
